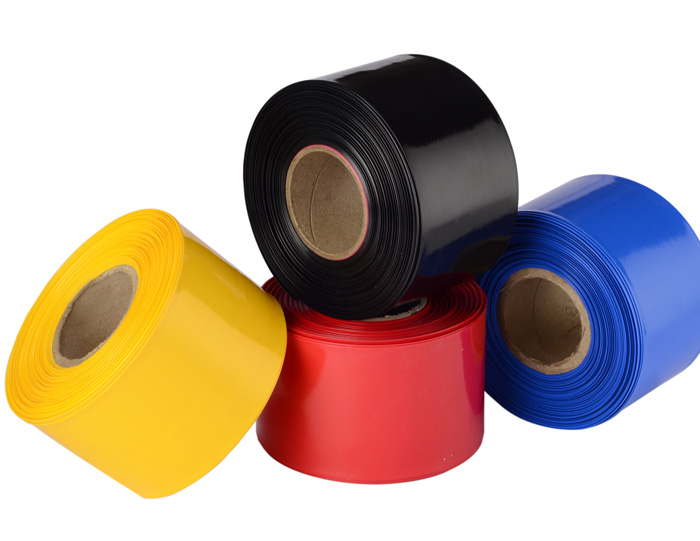

SIDDHIVINAYAK INDUSTRIES is recognized as the renowned manufacturer and exporter of superior quality PVC Shrink Label and Sleeves. Our product range comprises of PVC Shrink Labels, PVC Shrink Sleeves, PVC Shrink Films, PVC Heat Shrinkable tamper evident seals, PVC Heat Shrinkable tubes for busbar insulations and many more. These products are designed and manufactured using the best quality raw material, procured from some of the trustworthy and certified vendors of the market
| Property | Specification |
|---|---|
| Working Temperature | 90℃ |
| Dielectric Strength | 20 KV / sq mm |
| Insulation Resistance | 20 × 10 Ω at 500 VDC |
| Tensile Strength | Minimum 400 Kg / sq cm |
| Ultimate Elongation | Minimum 11% |
| Chemical Resistance | Good |
| Fire Resistance (UL94-V) | Self Extinguishing with no dripping |
| Shrinking Temperature | 150℃ – 170℃ for 4–5 minutes |
| Mechanical Strength | Excellent |
| Heat Dissipation | Excellent |

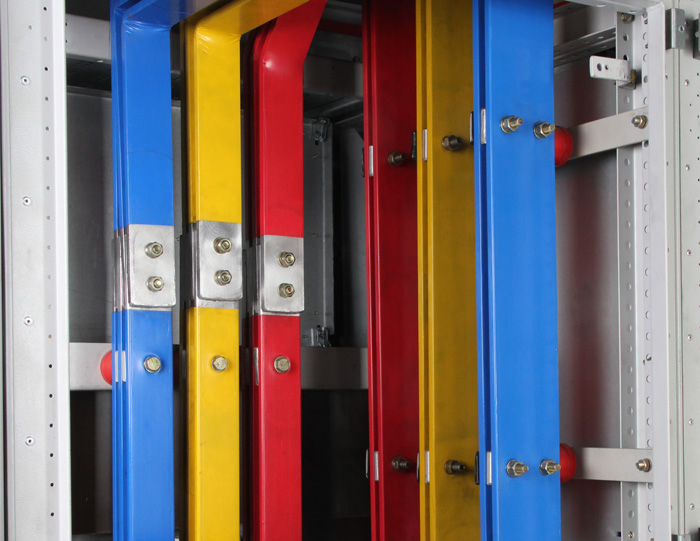

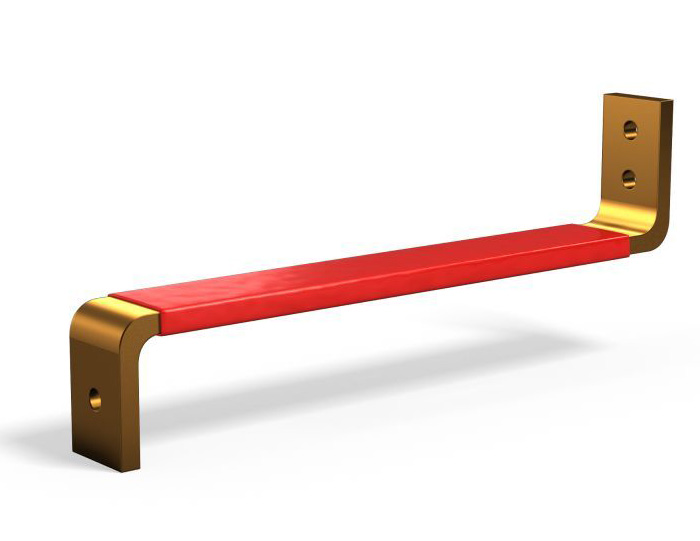

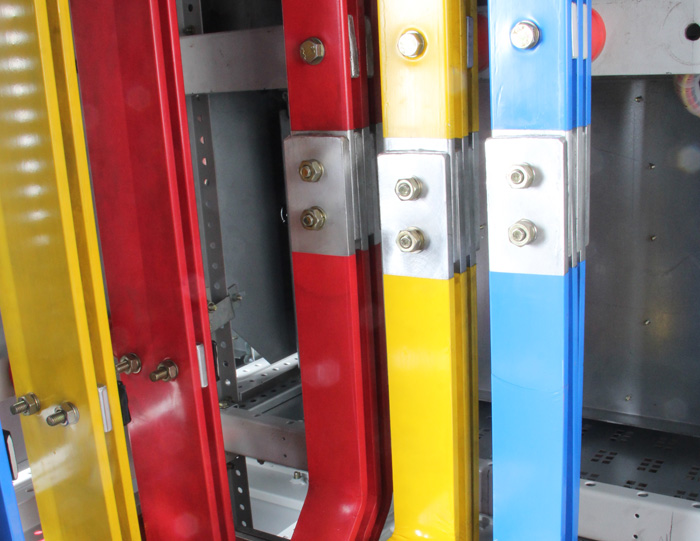

The chart below will give you the complete idea of BUSBARS sizes and the right size of PVC HEAT SHRINKABLE TUBING for the respective busbars.
| Sr. No. | Size (mm) | Suitable for Bus Bars |
|---|---|---|
| 1 | 17mm | 8x4, 6x6, 10x3 |
| 2 | 20mm | 12x3, 9x6 |
| 3 | 25mm | 15x3, 12x6 |
| 4 | 30mm | 20x3, 18x6, 16x3 |
| 5 | 35mm | 25x3, 20x6 |
| 6 | 41mm | 26x6, 25x9 |
| 7 | 48mm | 30x10, 30x6, 25x12 |
| 8 | 55mm | 38x6, 30x12 |
| 9 | 61mm | 40x10, 40x6, 38x12, 38x9 |
| 10 | 73mm | 50x6 |
| 11 | 81mm | 50x12, 50x10 |
| 12 | 85mm | 60x6, 60x10, 60x12 |
| 13 | 93mm | 75x6 |
| 14 | 103mm | 75x12 |
| 15 | 110mm | 90x12, 90x6 |
| 16 | 128mm | 100x9, 100x6 |
| 17 | 140mm | 100x12 |
| 18 | 150mm | 120x6, 120x10, 125x6 |
| 19 | 170mm | 125x10, 125x12 |
| 20 | 190mm | 150x12, 150x10, 150x6 |
| 21 | 210mm | 175x12, 175x10, 150x6 |
| 22 | 230mm | 200x6 |
| 23 | 250mm | 200x12, 200x10 |
| 24 | 300mm | 250x6, 250x12, 250x10 |
